Series 146

Inside Point Vernier Caliper

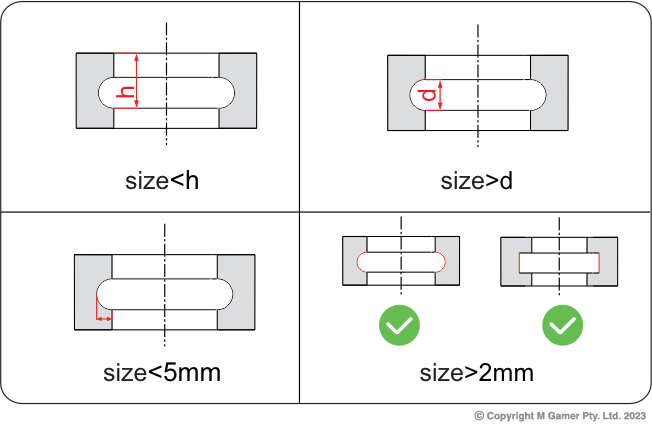

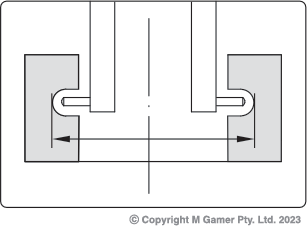

Measure the grooves
Made of stainless steel
Satin chrome plated reading surface

Brochure

Specifications

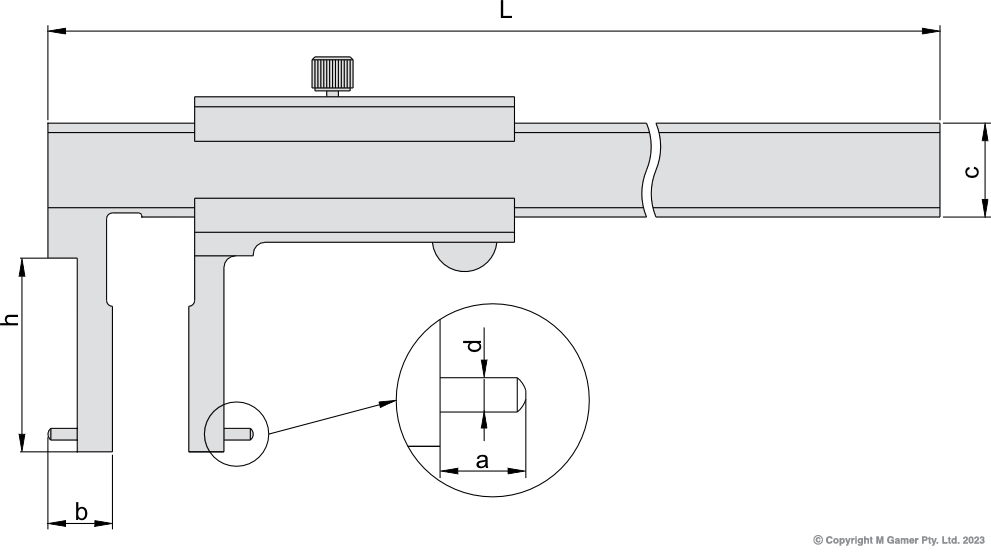

Part No	Status	Range	Accuracy	a	b	c	h	L	Diameter	Graduation
AC-146-006-11	Stocked	24-150mm	±0.04mm	5	12	16	30	250	Ø2	0.02mm
AC-146-006-13	Order In	24-150mm	±0.05mm	5	12	16	30	250	Ø2	0.05mm
AC-146-012-11	Order In	50-300mm	±0.06mm	8	25	17	80	410	Ø3	0.02mm
AC-146-012-13	Order In	50-300mm	±0.08mm	8	25	17	80	410	Ø3	0.05mm
