Series 160
Chamfer Gauge

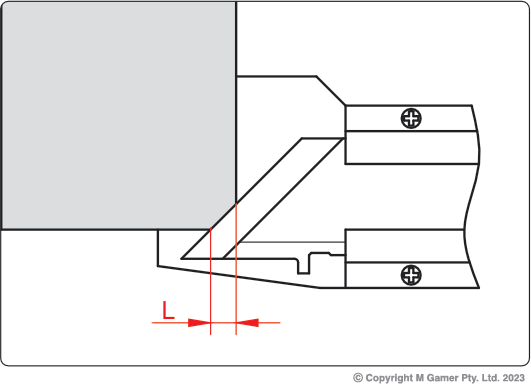

Measure α chamfer dimension
Graduation 0.02mm
Made of stainless steel
Satin chrome plated reading surface
Specifications
| Part No | Status | Range | Accuracy | Chamfer |
|---|---|---|---|---|
| AC-160-010-11 | Order In | 0-10mm | ±0.06mm | 30° |
| AC-160-010-12 | Order In | 0-10mm | ±0.06mm | 45° |
| AC-160-010-13 | Order In | 0-10mm | ±0.06mm | 60° |
Note: ETA for Order In products is between 8-12 weeks.
