Series 162

Offset Vernier Caliper

Calipers

Vernier

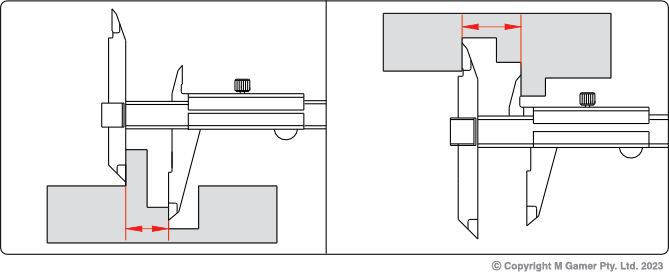

Adjust the beam-mounted jaw to facilitate measurement of stepped sections and hard-to reach workpiece
Made of stainless steel
Satin chrome plated reading surface

Brochure

Specifications

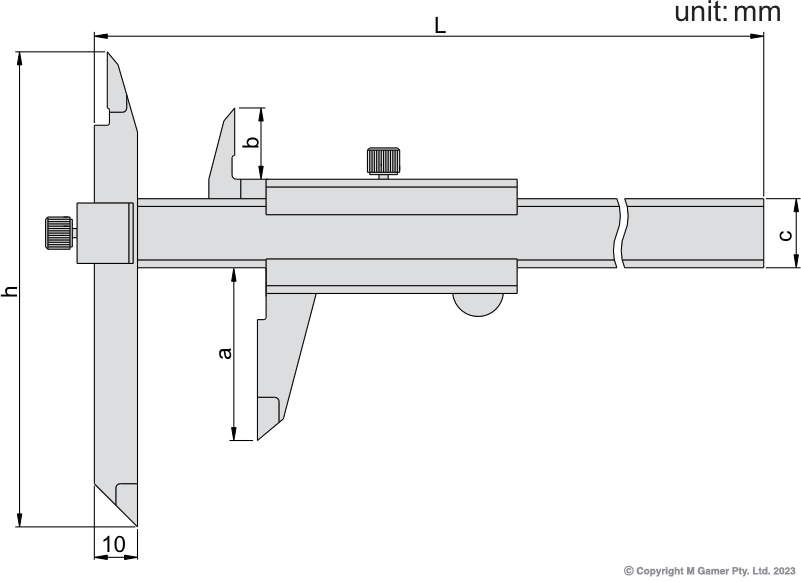

Part No	Status	Range	Accuracy	a	b	c	h	L	Graduation
AC-162-006-12	Order In	0-150mm/0-6"	±0.04mm	40	16.5	16	110	239	0.02mm/0.001''
AC-162-006-14	Order In	0-150mm/0-6"	±0.04mm	40	16.5	16	110	239	0.05mm/1/128''
AC-162-008-12	Order In	0-200mm/0-8"	±0.04mm	50	19.5	16	120	289	0.02mm/0.001''
AC-162-008-14	Order In	0-200mm/0-8"	±0.04mm	50	19.5	16	120	289	0.05mm/1/128''
AC-162-012-12	Order In	0-300mm/0-12"	±0.05mm	60	20.5	17	130	389	0.02mm/0.001''
AC-162-012-14	Order In	0-300mm/0-12"	±0.05mm	60	20.5	17	130	389	0.05mm/1/128''
