Series 185
Dial Height Gauge
Indicator graduation: 0.01mm

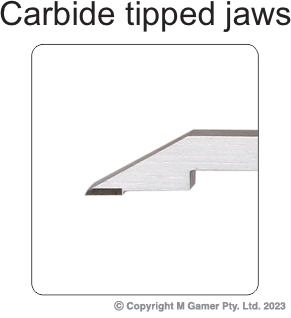

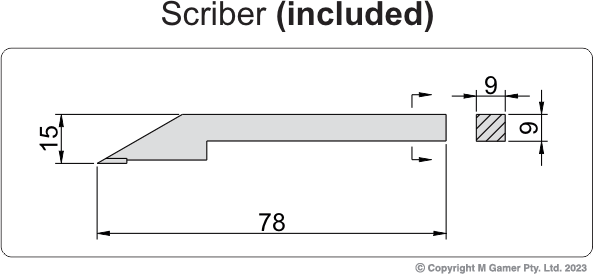

Carbide tipped scriber
Made of stainless steel (except the base)

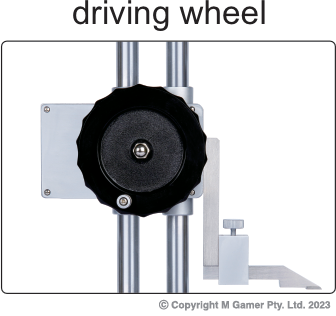

With driving wheel

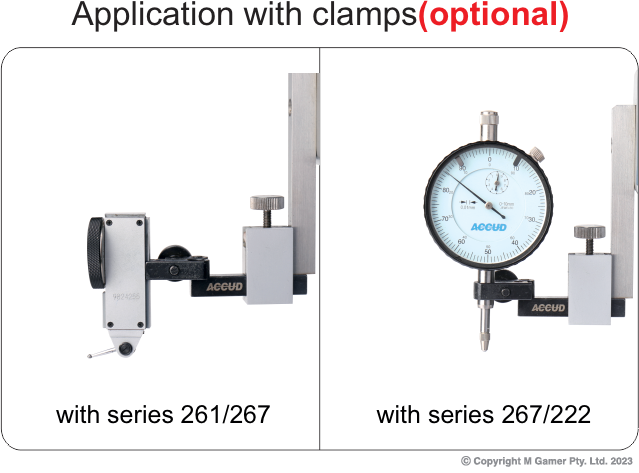

Optional accessory: 267 series clamps

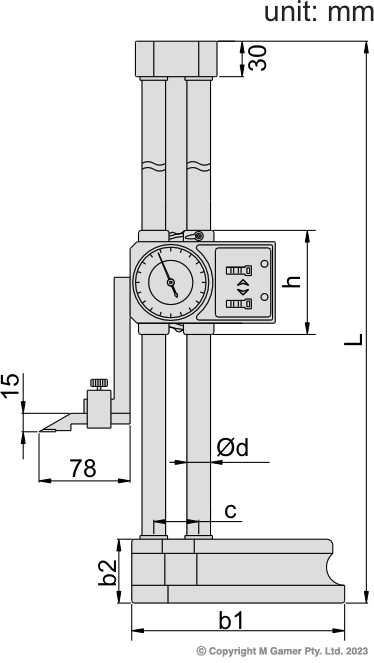

Specifications
| Part No | Status | Range | Accuracy | b1 | b2 | c | h | L | Diameter |
|---|---|---|---|---|---|---|---|---|---|
| AC-185-012-11 | Order In | 0-300mm | ±0.04mm | 135 | 43 | 33 | 84 | 475 | Ø15 |
| AC-185-024-11 | Order In | 0-600mm | ±0.05mm | 180 | 54 | 38 | 88 | 810 | Ø20 |
Note: ETA for Order In products is between 8-12 weeks.
