Series 342

Disk Micrometer

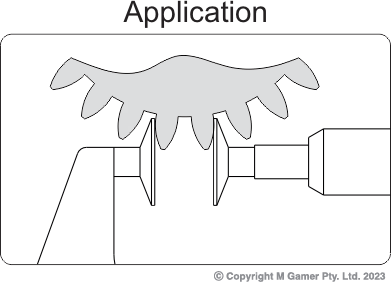

Measure root tangent length of gear
Graduation 0.01mm
Ratchet stop

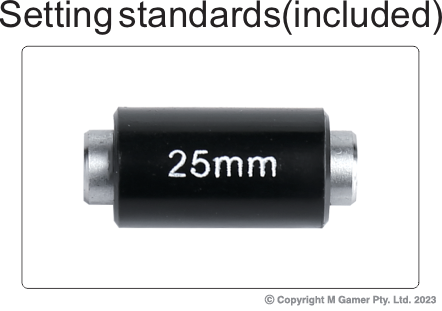

Supplied with setting standards (except 0-25mm)

Brochure

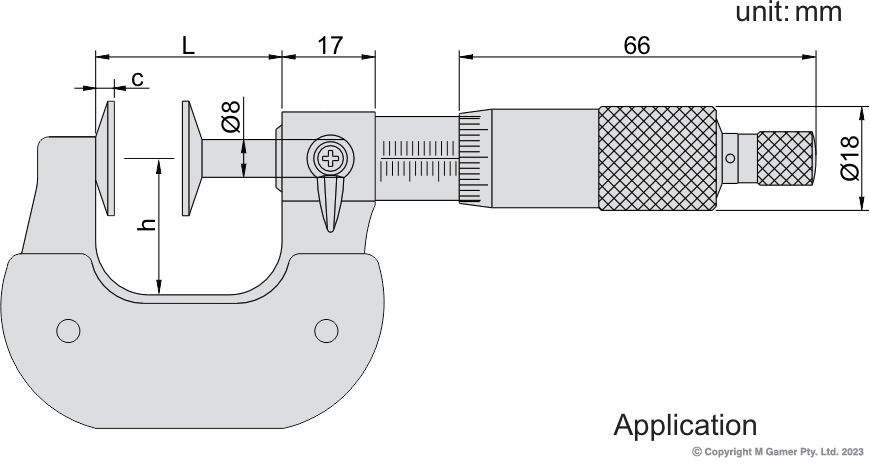

Specifications

Part No	Status	Range	Accuracy	c	h	L	Setting Standards
AC-342-001-02	Stocked	0-25mm	4μm	3.3	24	34	-
AC-342-002-02	Stocked	25-50mm	4μm	3.3	32	59	25mm
AC-342-003-02	Order In	50-75mm	5μm	3.3	45	85	50mm
AC-342-004-02	Order In	75-100mm	5μm	3.3	57	110	75mm
AC-342-005-02	Order In	100-125mm	6μm	4.3	70	138	100mm
AC-342-006-02	Order In	125-150mm	6μm	4.3	82	163	125mm
AC-342-007-02	Order In	150-175mm	7μm	4.3	95	188	150mm
AC-342-008-02	Order In	175-200mm	7μm	4.3	107	214	175mm
