Series 364
IP54 Digital Wide Range Three Points Internal Micrometer
Resolution: 0.001mm/0.00005"
IP54 protection level
Buttons: on/off, set, mm/inch,ABS/INC
Data output
Automatic power off
Carbide measuring faces
Ratchet stop

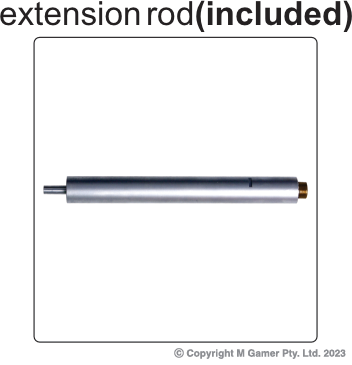

Supplied with extension rods

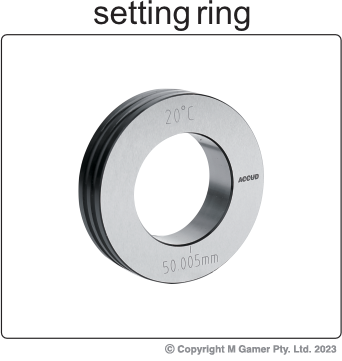

Setting rings are included(except 200-300mm)
Specifications
| Part No | Status | Range | Accuracy | Setting Ring | Extension Rod |
|---|---|---|---|---|---|
| AC-364-003-01 | Order In | 50-70mm/1.97-2.76" | 5μm | Ø50mm(included) | 150mm |
| AC-364-004-01 | Order In | 70-100mm/2.76-3.94" | 5μm | Ø70mm(included) | 150mm |
| AC-364-006-01 | Order In | 100-150mm/3.94-5.91" | 6μm | Ø100mm(included) | 150mm |
| AC-364-010-01 | Order In | 150-250mm/5.91-9.84" | 8μm | Ø150mm(included) | 150mm |
| AC-364-012-01 | Order In | 200-300mm/7.87-11.81" | 9μm | Ø200mm(optional) | 150mm |
Note: ETA for Order In products is between 8-12 weeks.
