Series 420
External Measurement Digital Caliper Gauge

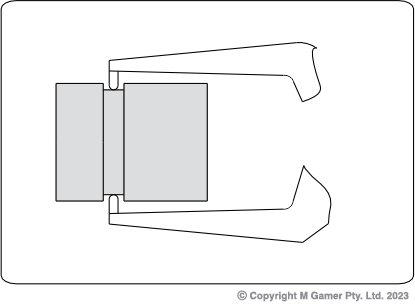

Measure the external dimension
Resolution: 0.01mm/0.0005"
Specifications

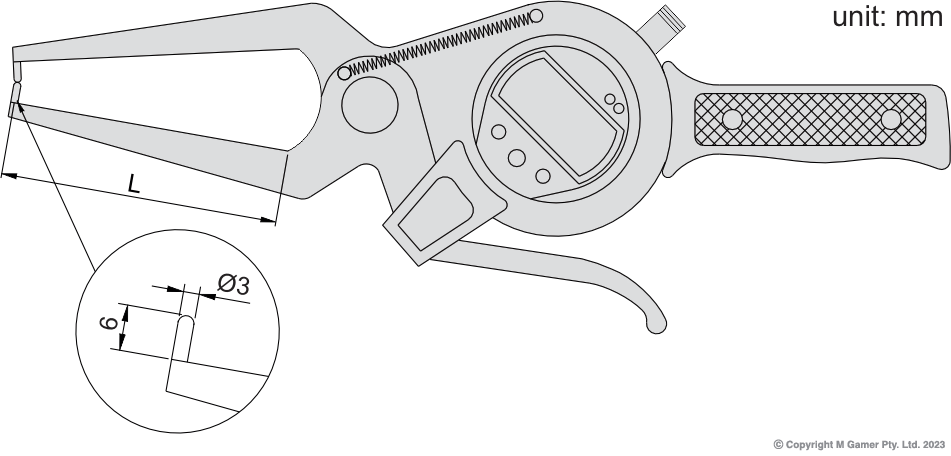

| Part No | Status | Range | Accuracy | L |
|---|---|---|---|---|
| AC-420-020-11 | Order In | 0-20mm/0-0.8" | ±0.04mm | 60 |
| AC-420-040-11 | Order In | 20-40mm/0.8-1.6" | ±0.04mm | 60 |
| AC-420-060-11 | Order In | 40-60mm/1.6-2.4" | ±0.04mm | 55 |
| AC-420-080-11 | Order In | 60-80mm/2.4-3.2" | ±0.04mm | 55 |
| AC-420-100-11 | Order In | 80-100mm/3.2-4" | ±0.04mm | 55 |
Note: ETA for Order In products is between 8-12 weeks.
