Series 544
Product thumb Product thumb

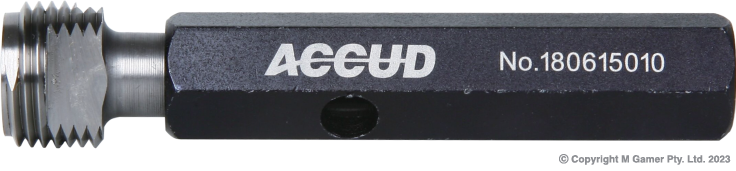

NPT Thread Gauge

Gauges
Gauge Blocks

Conforms to standard ANSI/ASME B1.20.1
Taper: 1:16
Made of Oil Hardened Non-shringking steel

Brochure

Specifications

Part NoStatusSize (mm)Type
AC-544-008-21Order InNPT2-1/2"X8Plug Gauge
AC-544-008-21ROrder InNPT2-1/2"X8Ring Gauge
AC-544-008-30Order InNPT3"X8Plug Gauge
AC-544-008-30ROrder InNPT3"X8Ring Gauge
AC-544-008-32Order InNPT3-1/2"X8Plug Gauge
AC-544-008-32ROrder InNPT3-1/2"X8Ring Gauge
AC-544-008-40Order InNPT4"X8Ring Gauge
AC-544-008-40ROrder InNPT4"X8Ring Gauge
AC-544-014-01Order InNPT1/2" x 14Plug Gauge
AC-544-014-01ROrder InNPT1/2" x 14Ring Gauge
AC-544-014-32Order InNPT3/4"x14Plug Gauge
AC-544-014-32ROrder InNPT3/4"x14Ring Gauge
AC-544-018-02Order InNPT1/4" x 18Plug Gauge
AC-544-018-02ROrder InNPT1/4" x 18Ring Gauge
AC-544-018-33Order InNPT3/8"x18Plug Gauge
AC-544-018-33ROrder InNPT3/8"x18Ring Gauge
AC-544-027-03StockedNPT 1/8" x 27Plug Gauge
AC-544-027-03ROrder InNPT 1/8" x 27Ring Gauge
AC-544-027-04Order InNPT 1/16" x 27Plug Gauge
AC-544-027-04ROrder InNPT 1/16" x 27Ring Gauge
AC-544-11D5-10Order InNPT1"x11.5Plug Gauge
AC-544-11D5-10ROrder InNPT1"x11.5Ring Gauge
AC-544-11D5-11Order InNPT1-1/2"x11.5Plug Gauge
AC-544-11D5-11ROrder InNPT1-1/2"x11.5Ring Gauge
AC-544-11D5-12Order InNPT1-1/4"x11.5Plug Gauge
AC-544-11D5-12ROrder InNPT1-1/4"x11.5Ring Gauge
AC-544-11D5-20Order InNPT2"X11.5Plug Gauge
AC-544-11D5-20ROrder InNPT2"X11.5Ring Gauge

Note: ETA for Order In products is between 8-12 weeks.
