Series 994
Straight Edge
Beveled edge to check the flatness
DIN874
Made of stainless steel
Stain chrome plating

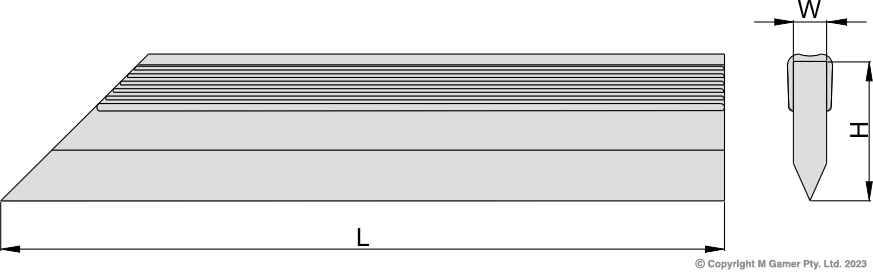

Specifications
| Part No | Status | Length | W | H | L1 |
|---|---|---|---|---|---|
| AC-994-002-01 | Order In | 50mm | 5 | 20 | 2.2µm |
| AC-994-003-01 | Order In | 75mm | 5 | 25 | 2.3µm |
| AC-994-004-01 | Order In | 100mm | 5 | 25 | 2.4µm |
| AC-994-005-01 | Order In | 125mm | 5 | 25 | 2.5µm |
| AC-994-006-01 | Order In | 150mm | 6 | 30 | 2.6µm |
| AC-994-008-01 | Order In | 200mm | 6 | 30 | 2.8µm |
| AC-994-010-01 | Order In | 250mm | 8 | 40 | 3.0µm |
| AC-994-012-01 | Order In | 300mm | 8 | 40 | 3.2µm |
| AC-994-016-01 | Order In | 400mm | 10 | 50 | 3.6µm |
| AC-994-020-01 | Order In | 500mm | 10 | 50 | 4.0µm |
Note: ETA for Order In products is between 8-12 weeks.
