Series ITC120
Infrared Thermal Imaging Camera

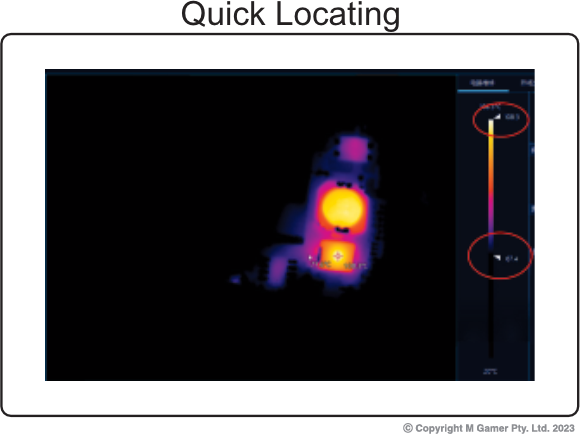

For quick finding the current leakage or short circuit position when reparing PCBA
For simulating the heating condition of the PCBA in a closed environment when designing
With high limit alarm
With software, data can be exported to Excel
Flexible stand
Specifications
| Part No | Status | Specification |
|---|---|---|
| AC-ITC120 | Order In | IR image- Resolution: 260x200
IR image- Measuring range: -10ºC - 120ºC IR image- Accuracy: ±3º IR image- Frame rate: 25Hz IR image- Field of view: Horizontal :34.4º,vertical: 25.8º IR image- Lens: Ø4mm IR image- Emissivity: 0.1-1(adjustable) Data output: USB (Type C) Working temperature: -10ºC-55ºC Protection level: IP54 Power supply: DC 5V Size: 220×172×241mm Weight: 1.6kg INCLUDED ACCESSORIES Main unit: 1pc Stand: 1pc USB cable and software: 1pc AC/DC adapter: 1pc |
Note: ETA for Order In products is between 8-12 weeks.
