Series 201
Linear Gauge

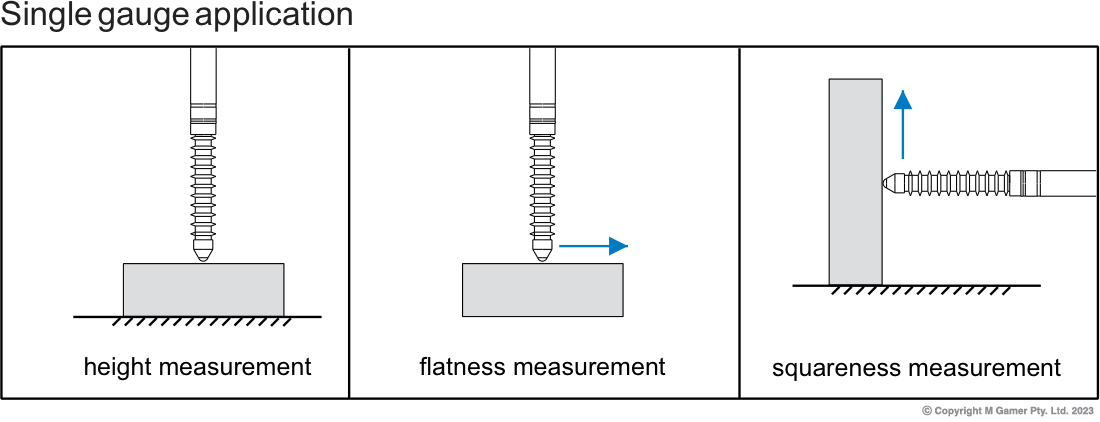

Suitable for measuring the height, thickness, squareness, coaxiality and so on
IP65 protection level
High frequence: 100 times/s, can measure high speed workpiece
Output signal: 90°phase difference wave
Standard cable length: 2m
Long working life due to the special bearing
Specifications
Part No | Status | Interface | Range | Measuring Force | Stem | Accuracy | Hysteresis |
---|---|---|---|---|---|---|---|
AC-201-010-01 | Order In | Pin4 | 0-12.7mm | 1.5N | Ø8mm | 5µm | 2µm |
AC-201-010-02 | Order In | RS232 | 0-12.7mm | 1.5N | Ø8mm | 5µm | 2µm |
AC-201-010-11 | Order In | Pin4 | 0-12.7mm | 1.5N | Ø8mm | 20µm | 10µm |
AC-201-010-12 | Order In | RS232 | 0-12.7mm | 1.5N | Ø8mm | 20µm | 10µm |
Note: ETA for Order In products is between 8-12 weeks.
