Series 321

Micrometer Setting Standard

Outside Micrometers

Accessories

For standard value setting

Brochure

Specifications

Part No	Status	Accuracy	L	Type	Diameter

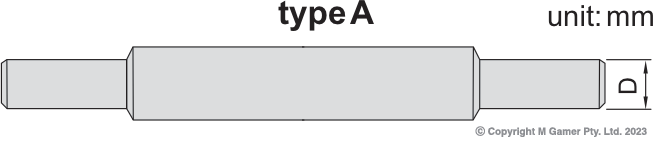

AC-321-001-ST	Stocked	±1.5μm	25mm	A	Ø7mm
AC-321-002-ST	Order In	±2μm	50mm	A	Ø7mm
AC-321-003-ST	Stocked	±2.5μm	75mm	A	Ø7mm
AC-321-004-ST	Stocked	±3μm	100mm	A	Ø8mm
AC-321-005-ST	Order In	±3.5μm	125mm	A	Ø8mm
AC-321-006-ST	Order In	±4μm	150mm	A	Ø8mm
AC-321-007-ST	Order In	±4.5μm	175mm	A	Ø8mm
AC-321-008-ST	Order In	±5μm	200mm	A	Ø8mm
AC-321-009-ST	Order In	±5.5μm	225mm	A	Ø8mm
AC-321-010-ST	Order In	±6μm	250mm	A	Ø8mm
AC-321-011-ST	Order In	±6.5μm	275mm	A	Ø8mm

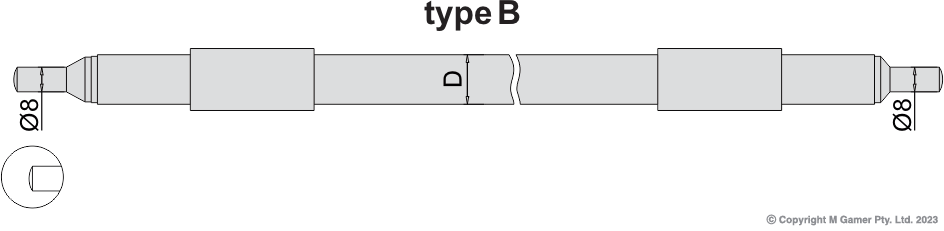

AC-321-012-ST	Order In	±7μm	300mm	B	Ø16mm
AC-321-013-ST	Order In	±7.5μm	325mm	B	Ø16mm
AC-321-014-ST	Order In	±8μm	350mm	B	Ø16mm
AC-321-015-ST	Order In	±8.5μm	375mm	B	Ø16mm
AC-321-016-ST	Order In	±9μm	400mm	B	Ø16mm
AC-321-017-ST	Order In	±9.5μm	425mm	B	Ø16mm
AC-321-018-ST	Order In	±10μm	450mm	B	Ø16mm
AC-321-019-ST	Order In	±10.5μm	475mm	B	Ø16mm
AC-321-020-ST	Order In	±11μm	500mm	B	Ø16mm
AC-321-021-ST	Order In	±11.5μm	525mm	B	Ø16mm
AC-321-023-ST	Order In	±12.5μm	575mm	B	Ø16mm
AC-321-025-ST	Order In	±13.5μm	625mm	B	Ø16mm
AC-321-027-ST	Order In	±14.5μm	675mm	B	Ø16mm
AC-321-029-ST	Order In	±15.5μm	725mm	B	Ø16mm
AC-321-031-ST	Order In	±16.5μm	775mm	B	Ø16mm
AC-321-033-ST	Order In	±17.5μm	825mm	B	Ø16mm
AC-321-035-ST	Order In	±18.5μm	875mm	B	Ø16mm
AC-321-037-ST	Order In	±19.5μm	925mm	B	Ø16mm
AC-321-039-ST	Order In	±20.5μm	975mm	B	Ø16mm

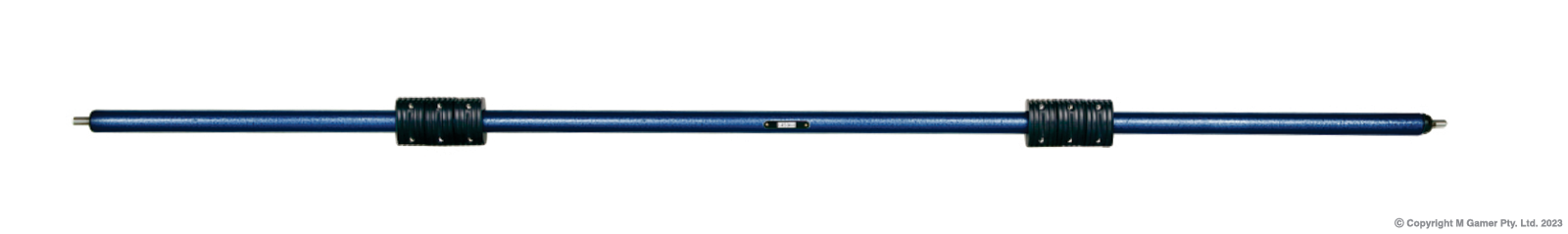

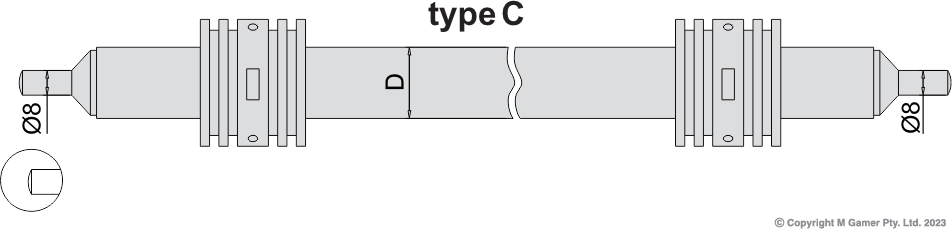

AC-321-042-ST	Order In	±22μm	1050mm	C	Ø23mm
AC-321-046-ST	Order In	±24μm	1150mm	C	Ø23mm
AC-321-050-ST	Order In	±26μm	1250mm	C	Ø23mm
AC-321-054-ST	Order In	±28μm	1350mm	C	Ø23mm
AC-321-058-ST	Order In	±30μm	1450mm	C	Ø23mm
AC-321-062-ST	Order In	±32μm	1550mm	C	Ø23mm
AC-321-066-ST	Order In	±34μm	1650mm	C	Ø23mm
AC-321-070-ST	Order In	±36μm	1750mm	C	Ø23mm
AC-321-074-ST	Order In	±38μm	1850mm	C	Ø23mm
AC-321-078-ST	Order In	±40μm	1950mm	C	Ø23mm
