Series 343
Product thumb Product thumb Product thumb

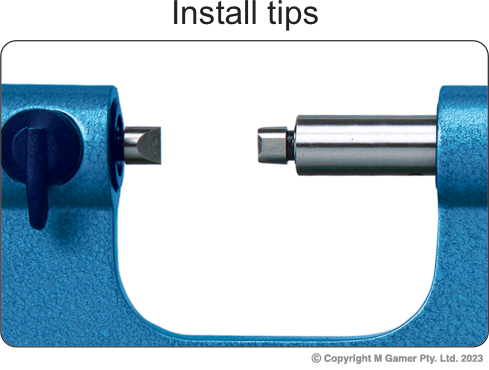

Measuring Tips for Screw Thread Micrometer

Outside Micrometers
Accessories

For series 343 screw thread micrometer

Brochure

Specifications

Part NoStatusPitchThread Angle
AC-343-000-01Order In0.4-0.5mm/ 64-48TPIMetric and unified thread (60° thread angle)
AC-343-000-02Stocked0.6-0.9mm/ 44-28TPIMetric and unified thread (60° thread angle)
AC-343-000-03Order In1-1.75mm/ 24-14TPIMetric and unified thread (60° thread angle)
AC-343-000-04Order In2-3mm/ 13-9TPIMetric and unified thread (60° thread angle)
AC-343-000-05Order In3.5-5mm/ 8-5TPIMetric and unified thread (60° thread angle)
AC-343-000-06Order In5.5-7mm/ 4.5-3.5TPIMetric and unified thread (60° thread angle)
AC-343-000-11Order In60-48TPIWhitworth thread (55° thread angle)
AC-343-000-12Order In48-40TPIWhitworth thread (55° thread angle)
AC-343-000-13Order In40-32TPIWhitworth thread (55° thread angle)
AC-343-000-14Order In32-24TPIWhitworth thread (55° thread angle)
AC-343-000-15Order In24-18TPIWhitworth thread (55° thread angle)
AC-343-000-16Order In18-14TPIWhitworth thread (55° thread angle)
AC-343-000-17Order In14-10TPIWhitworth thread (55° thread angle)
AC-343-000-18Order In10-7TPIWhitworth thread (55° thread angle)
AC-343-000-19Order In7-4.5TPIWhitworth thread (55° thread angle)
AC-343-000-20Order In4.5-3.5TPIWhitworth thread (55° thread angle)
AC-343-000-2TSStocked10 pairs/set, including all above tipsWhitworth thread (55° thread angle)
AC-343-000-TSStocked6 pairs/set, including all above tipsMetric and unified thread (60° thread angle)

Note: ETA for Order In products is between 8-12 weeks.
