Series 634
Stand For Granite Surface Plate

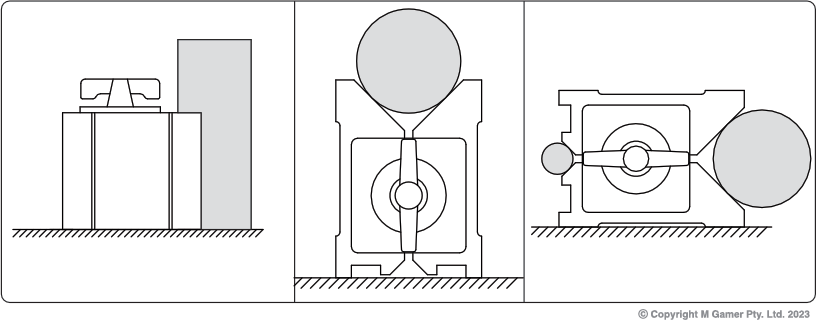

Hold cylindrical workpiece for inspection and machining
Top groove for large shafts
Bottom grooves for small shafts
Specifications
| Part No | Status | For Shaft Range | Magnetic Force | Paralllelism | Squareness | Size | Range |
|---|---|---|---|---|---|---|---|
| AC-634-067-01 | Order In | 6 - 67mm | 64kgf | 10µm | 10µm | 80x70x95mm | |
| AC-634-067-02 | Order In | 6 - 67mm | 80kgf | 10µm | 10µm | 100x70x95mm | |
| AC-634-067-03 | Order In | 6 - 67mm | 96kgf | 10µm | 10µm | 120x70x95mm |
Note: ETA for Order In products is between 8-12 weeks.
