Series 635
Jact Set for Granite Surface Plate

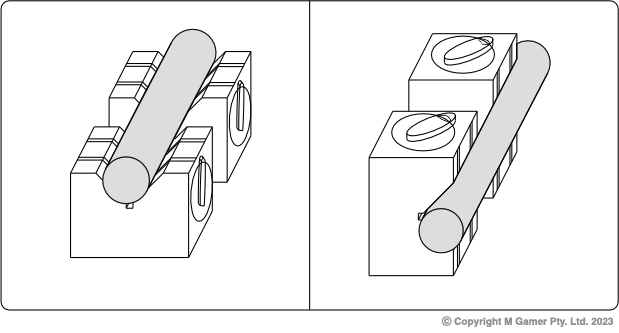

Hold cylindrical workpieces for inspection, not suitable for machining due to weak magnetic force
Two V-blocks per set

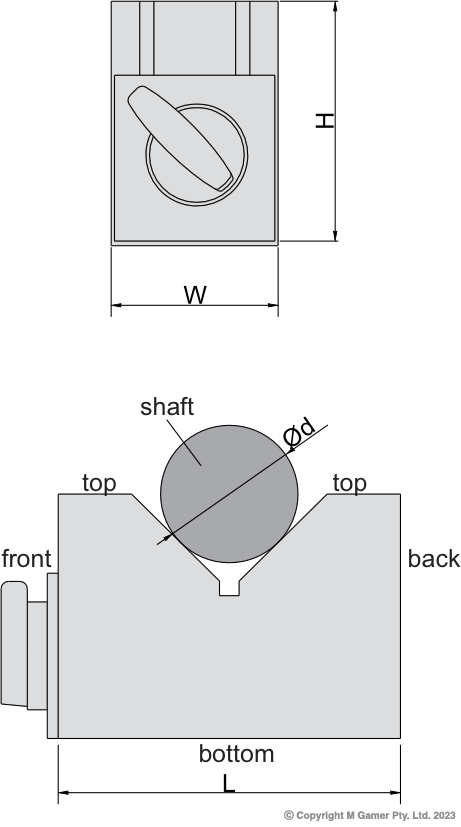

Specifications
| Part No | Status | For Shaft Range | Magnetic Force | Paralllelism | Squareness | Size | Range |
|---|---|---|---|---|---|---|---|
| AC-635-070-01 | Order In | 6 - 46mm | 8kgf | 10µm | 10µm | 70x40x50mm | |
| AC-635-150-01 | Order In | 6 -125mm | 14kgf | 10µm | 10µm | 150x50x100mm |
Note: ETA for Order In products is between 8-12 weeks.
