Series HL100

Portable Hardness Tester

Digital Measuring

Hardness Testers

Large LCD display with backlight
Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength MPa

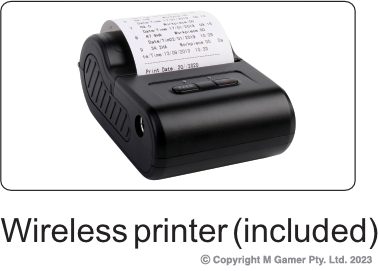

With wireless printer Can set impact direction
With average value calculation function Automatic power off
Conforms to the standard ASTMA956-02

Brochure

Specifications

Part No	Status	Specification

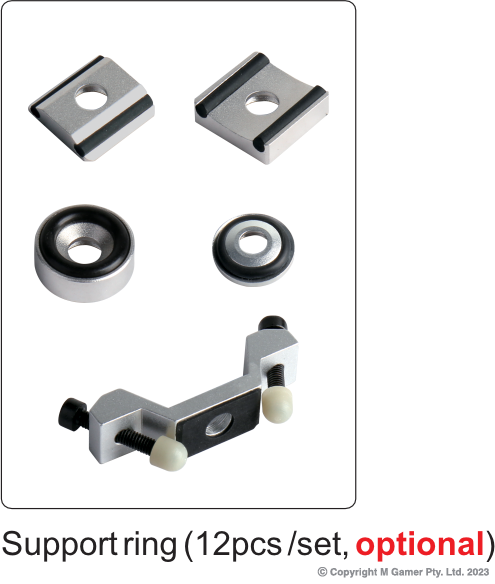

AC-HL100	Order In	Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa Accuracy: ±6HLD/0.6HRC(HLD=800) Min. workpiece weight: ＞5kg (directly) Min. workpiece weight: ＞2kg (on solid support) Min. workpiece weight: ＞0.1kg (coupled on large plate) Min. workpiece thickness: ＞5mm Min. workpiece diameter: ＞22mm Max. workpiece surface roughness: Ra＜1.6µm Power: 3 x AAA batteries Dimension: 150 × 80× 24mm Included accessories Main unit: 1pc Wireless printer: 1pc Test block: 1pc Small support ring: 1pc Brush: 1pc Charger for printer: 1pc Optional accesories Support ring (12pcs set): AC-HL-SP
