Series HL200
Portable Hardness Tester
Touch screen, with backlight
Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength Mpa
With wireless printer Can set impact direction Memory:500
Low and high limits with judgement
Automatic power off
Conforms to the standard ASTMA956-02
Specifications
| Part No | Status | Specification |
|---|---|---|
| AC-HL200 | Stocked | Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa

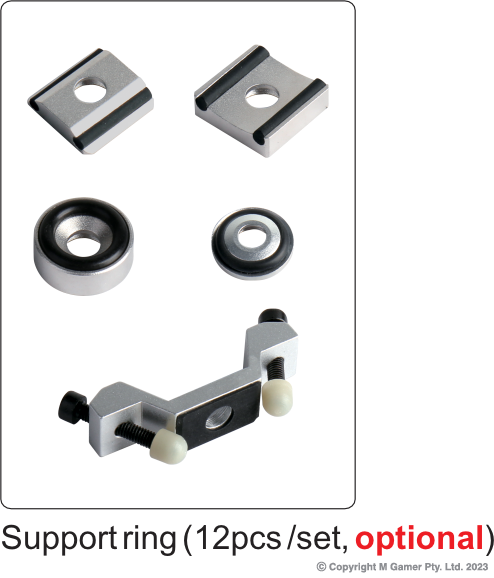

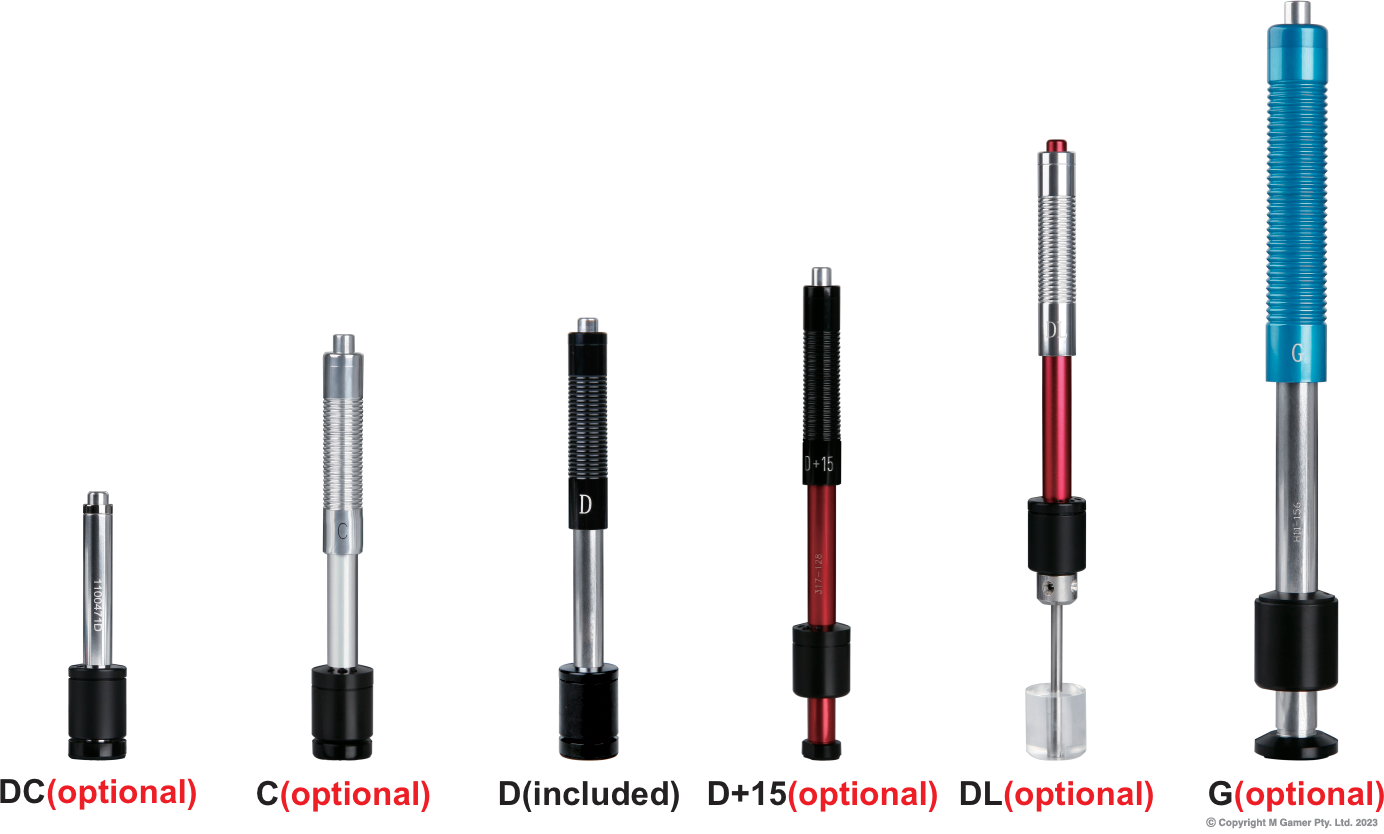

Accuracy: ±6HLD/0.6HRC(HLD=800) Min. workpiece weight: ＞5kg (directly) Min. workpiece weight: ＞2kg (on solid support) Min. workpiece weight: ＞0.1kg (coupled on large plate) Min. workpiece thickness: ＞5mm Min. workpiece diameter: ＞22mm Max. workpiece surface roughness: Ra＜1.6µm Power: Rechargeable battery Dimension: 135×83×24mm Included accessories Main unit: 1pc Wireless printer: 1pc Test block: 1pc Small support ring & brush: 1pc Charger for printer: 1pc Optional accessories Impact device DC: HL200-DC Impact device C: HL200-C Impact device D+15: HL200-D15 Impact device DL: HL200-DL Impact device G: HL200-G Support ring (12pcs set): HL-SP |
Note: ETA for Order In products is between 8-12 weeks.
