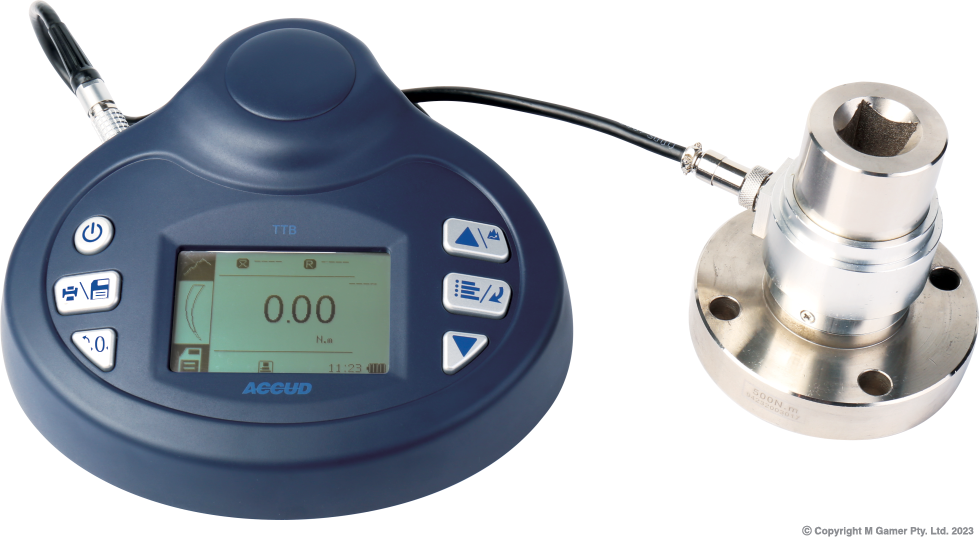

Series TTB
Digital Torque Meter
For torque wrench and torque screwdriver calibration
Peak, preset and real-time working mode
Unit: N.m, N.cm, kgf.cm, lbf.cm, lbf.in
Memory: 1000
Power off automatically
With software, can show the torque graph
Specifications
| Part No | Status | Specification |
|---|---|---|
| AC-TTB10 | Order In | Range: 10N.m
Accuracy: ±0.3% Resolution: 0.001N.m Size of square drive: 1/2"" Output: USB and RS232 Power: rechargeable battery Weight: 1.5kg Included accessories Main unit: 1pc Charger: 1pc Software with cable: 1pc Convertor: 1pc Optional Accessories Wireless Printer: PR100 Stand(Arm length:150-600mm): TTB-ST1 Stand(Arm length:150-1000mm):TTB-ST2 |
| AC-TTB100 | Order In | Range: 100N.m
Accuracy: ±0.3% Resolution: 0.01N.m Size of square drive: 1/2"" Output: USB and RS232 Power: rechargeable battery Weight: 1.5kg Included accessories Main unit: 1pc Charger: 1pc Software with cable: 1pc Convertor: 1pc Optional Accessories Wireless Printer: PR100 Stand(Arm length:150-600mm): TTB-ST1 Stand(Arm length:150-1000mm):TTB-ST2 |
| AC-TTB5 | Order In | Range: 5N.m
Accuracy: ±0.3% Resolution: 0.0005N.m Size of square drive: 1/2"" Output: USB and RS232 Power: rechargeable battery Weight: 1.5kg Included accessories Main unit: 1pc Charger: 1pc Software with cable: 1pc Convertor: 1pc Optional Accessories Wireless Printer: PR100 Stand(Arm length:150-600mm): TTB-ST1 Stand(Arm length:150-1000mm):TTB-ST2 |
| AC-TTB50 | Order In | Range: 50N.m
Accuracy: ±0.3% Resolution: 0.005N.m Size of square drive: 1/2"" Output: USB and RS232 Power: rechargeable battery Weight: 1.5kg Included accessories Main unit: 1pc Charger: 1pc Software with cable: 1pc Convertor: 1pc Optional Accessories Wireless Printer: PR100 Stand(Arm length:150-600mm): TTB-ST1 Stand(Arm length:150-1000mm):TTB-ST2 |
| AC-TTB500 | Order In | Range: 500N.m
Accuracy: ±0.3% Resolution: 0.05N.m Size of square drive: 3/4"" Output: USB and RS232 Power: rechargeable battery Weight: 1.5kg Included accessories Main unit: 1pc Charger: 1pc Software with cable: 1pc Convertor: 1pc Optional Accessories Wireless Printer: PR100 Stand(Arm length:150-600mm): TTB-ST1 Stand(Arm length:150-1000mm):TTB-ST2 |
Note: ETA for Order In products is between 8-12 weeks.
