Series 211

Digital Indicator

Indicators

Digital

With analog reading
Button: tolerance set, data preset, inch/mm conversion, measuring direction set, max./min./range measurement, absolute/incremental measurement
Data output(cable code:200-03 or 200-04)
Automatic power off
Supplied with flat and lug back

Brochure

Specifications

Part No	Status	Range	Accuracy	Hysteresis	Resolution

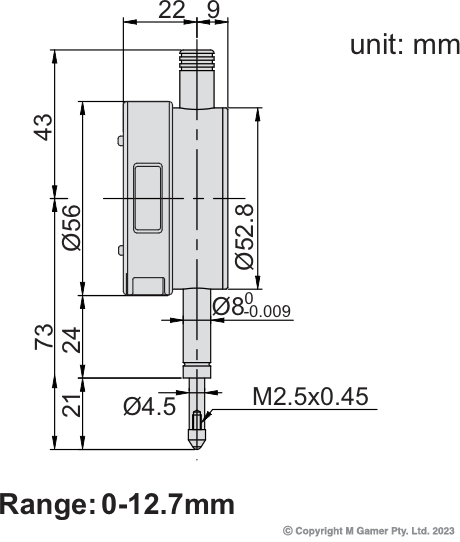

AC-211-010-03	Stocked	12.7mm/0.5"	5µm	2µm	0.001mm/0.00005"
AC-211-010-13	Order In	12.7mm/0.5"	20µm	10µm	0.01mm/0.0005"

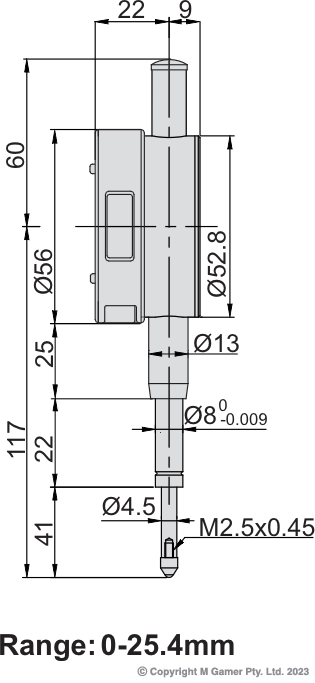

AC-211-025-03	Order In	25.4mm/1"	5µm	3µm	0.001mm/0.00005"
AC-211-025-13	Order In	25.4mm/1"	20µm	10µm	0.01mm/0.0005"

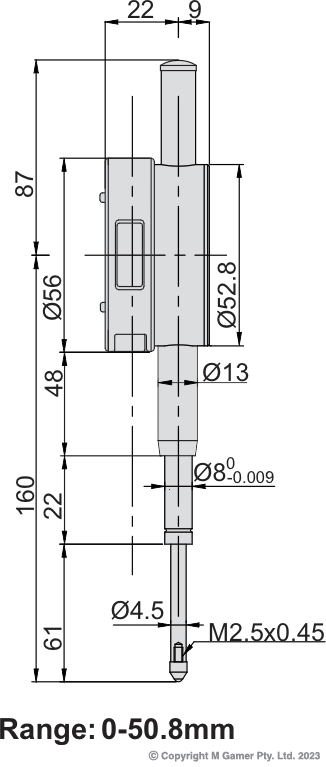

AC-211-050-03	Order In	50.8mm/2"	6µm	3µm	0.001mm/0.00005"
AC-211-050-13	Order In	50.8mm/2"	30µm	10µm	0.01mm/0.0005"
