Series 218

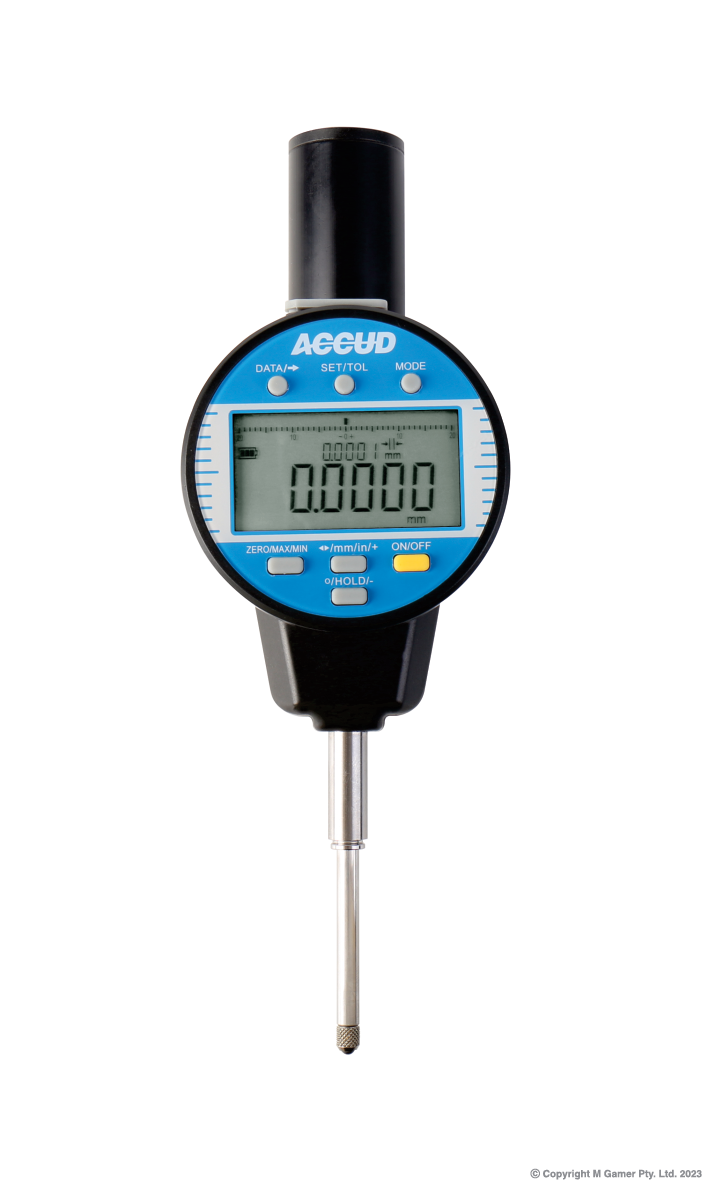

High Precision Digital Indicator

Indicators

Digital

Linear ball bearings for ten million times use
Absolute encoder, the original data remains after power off
Reading in digital and analog

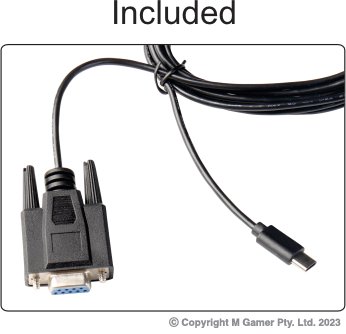

Supplied with RS232 cable (with software)
Button: tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, resolution adjustment
Power: rechargeable battery, for 24 hours
continuous working(full charge)

Brochure

Specifications

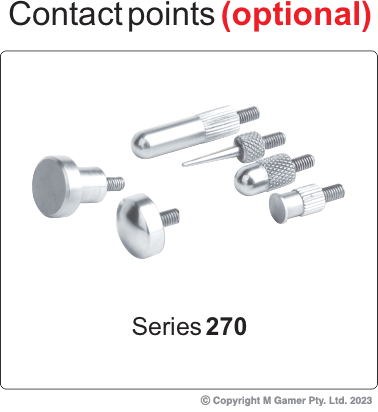

Part No	Status	Range	Accuracy	Hysteresis	Resolution	Styli	Back

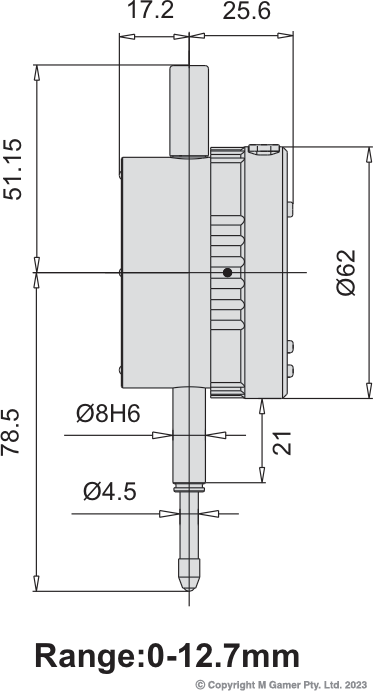

AC-218-010-01	Order In	12.7mm/0.5"	1.5µm	1µm	0.0002mm/0.00001" 0.001mm/0.00005" 0.01mm/0.0005"	Ruby	flat
AC-218-010-11	Order In	12.7mm/0.5"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat

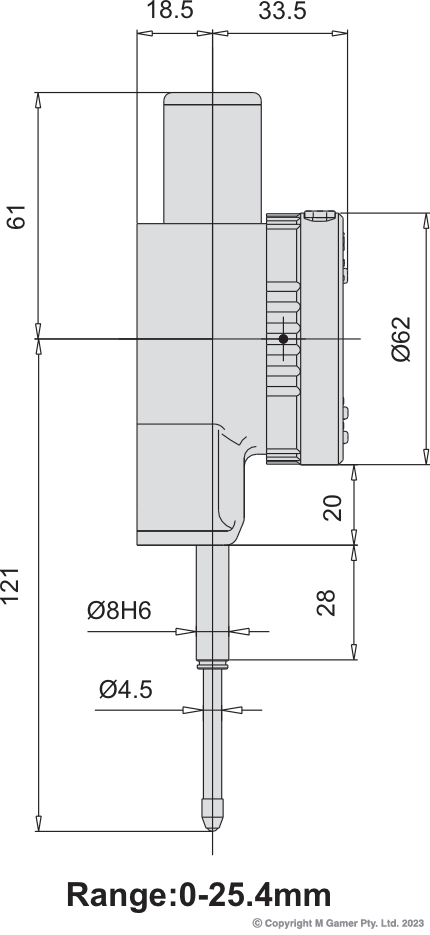

AC-218-025-01	Order In	25.4mm/1"	1.8µm	1µm	0.0002mm/0.00001" 0.001mm/0.00005" 0.01mm/0.0005"	Ruby	flat
AC-218-025-11	Order In	25.4mm/1"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat

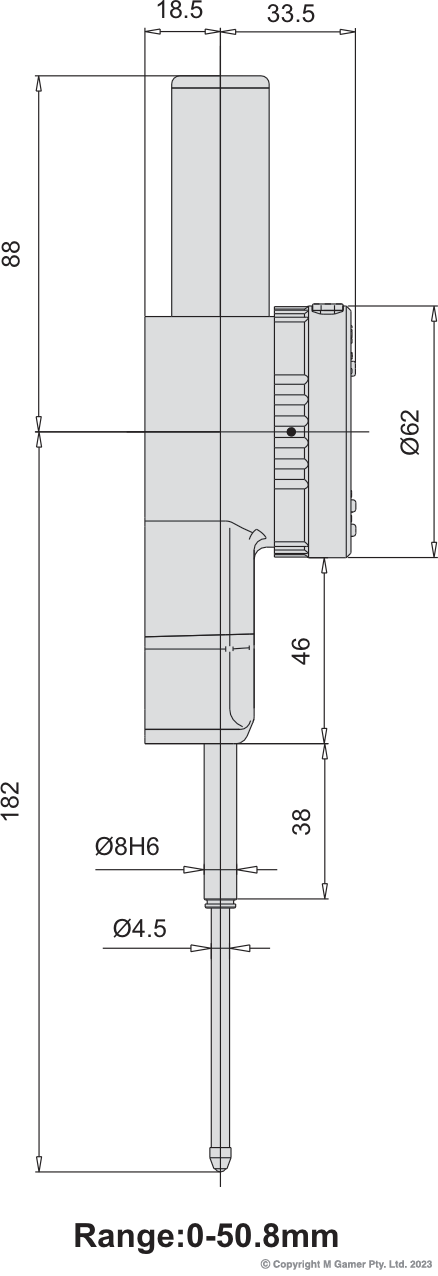

AC-218-050-11	Order In	50.8mm/2"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat
