Series 213

Waterproof Digital Indicator

Indicators

Digital

Dust/waterproof
Button: on/off, zero, inch/mm conversion, measuring direction set, data preset absolute/incremental measurement
Automatic power off
Data output(cable code:200-01 or 200-02)
Supplied with lug and flat back

Brochure

Specifications

Part No	Status	Range	Accuracy	Hysteresis	Ingress Level	Resolution

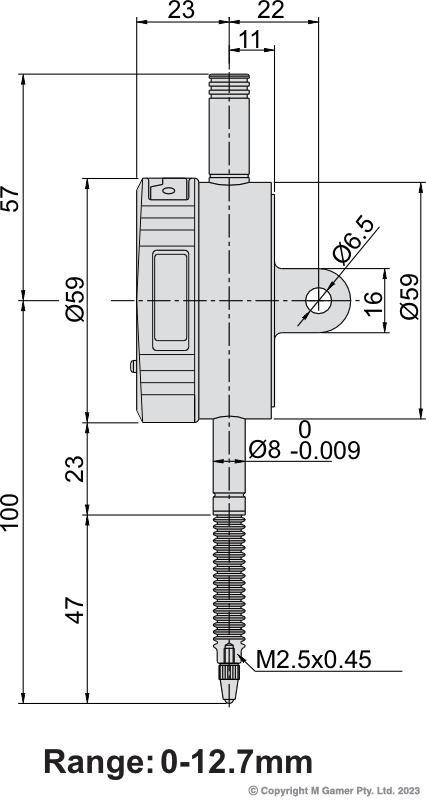

AC-213-010-01	Stocked	12.7mm/0.5"	5µm	2µm	IP65	0.001mm/0.00005"
AC-213-010-11	Order In	12.7mm/0.5"	20µm	10µm	IP65	0.01mm/0.0005"

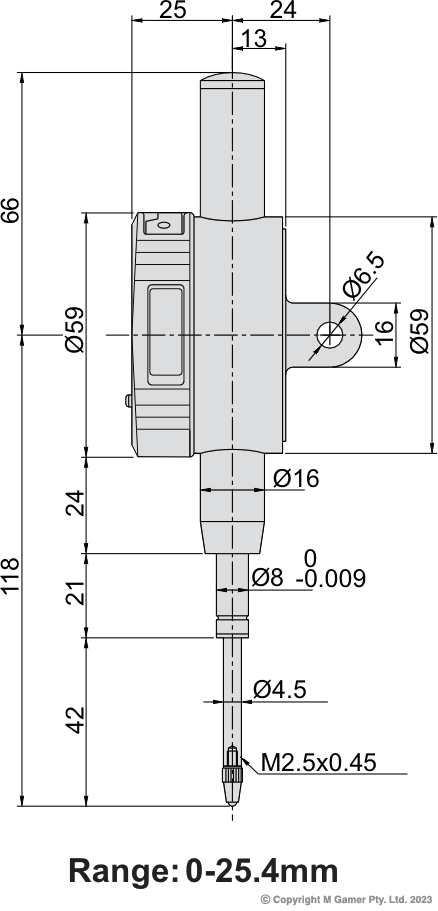

AC-213-025-01	Order In	25.4mm/1"	5µm	3µm	IP54	0.001mm/0.00005"
AC-213-025-11	Order In	25.4mm/1"	20µm	10µm	IP54	0.01mm/0.0005"

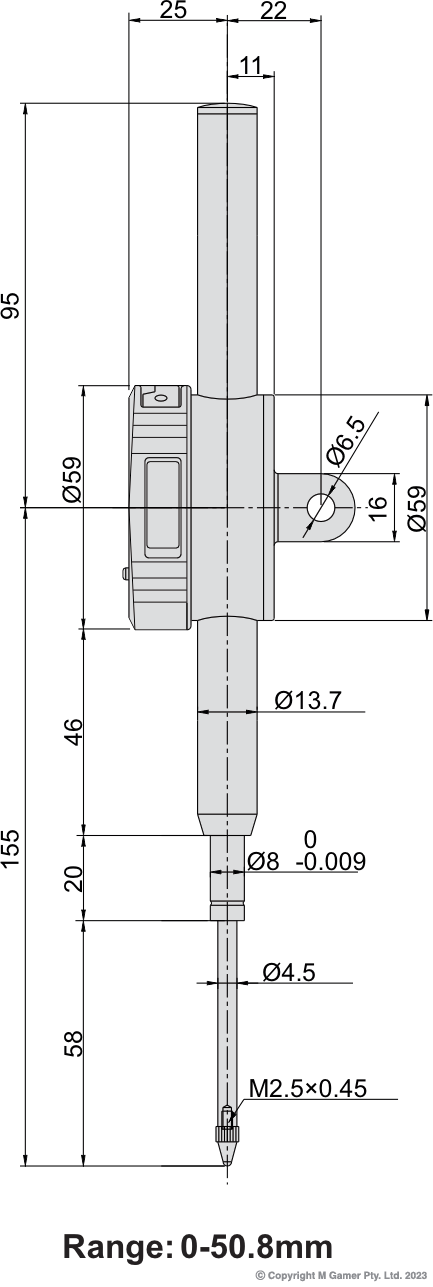

AC-213-050-01	Order In	50.8mm/2"	6µm	3µm	IP54	0.001mm/0.00005"
AC-213-050-11	Order In	50.8mm/2"	30µm	10µm	IP54	0.01mm/0.0005"
