Series 218

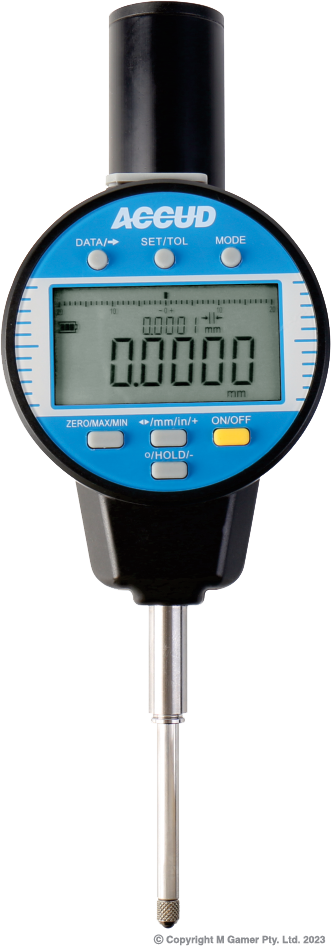

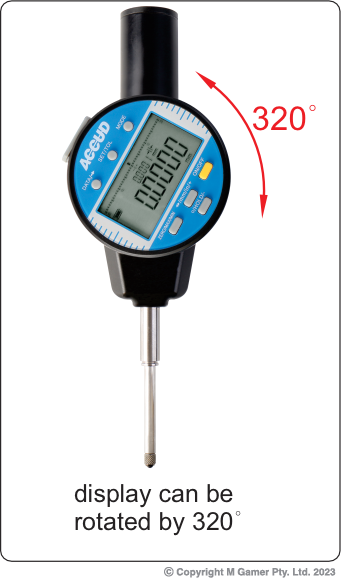

High Precision Wireless Digital Indicator

Indicators

Digital

Built-in wireless transmission, Zigbee singal

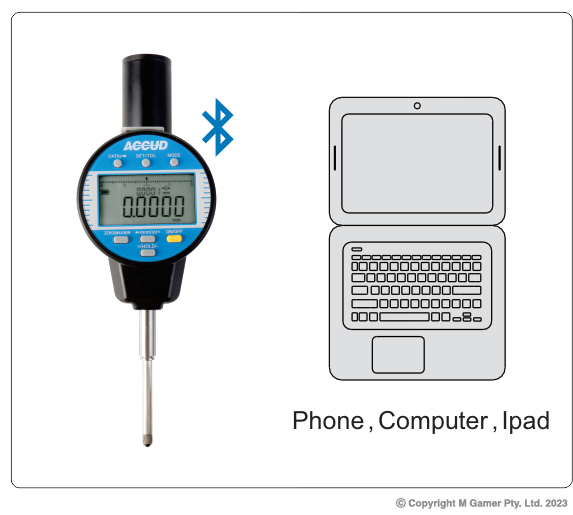

Built-in bluetooth
Absolute encoder, the original data remains after power off
Reading in digital and analog
Supplied with RS232 cable (with software)
Button: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, resolution adjustment
Power: rechargeable battery, for 24 hours continuous working(full charge)

Brochure

Specifications

Part No	Status	Range	Accuracy	Hysteresis	Resolution	Styli	Back

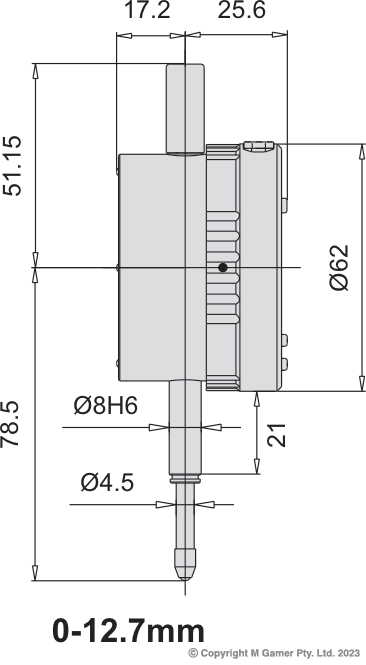

AC-218-010-01W	Order In	12.7mm/0.5"	1.5µm	1µm	0.0002mm/0.00001" 0.001mm/0.00005" 0.01mm/0.0005"	Ruby	flat
AC-218-010-11W	Order In	12.7mm/0.5"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat

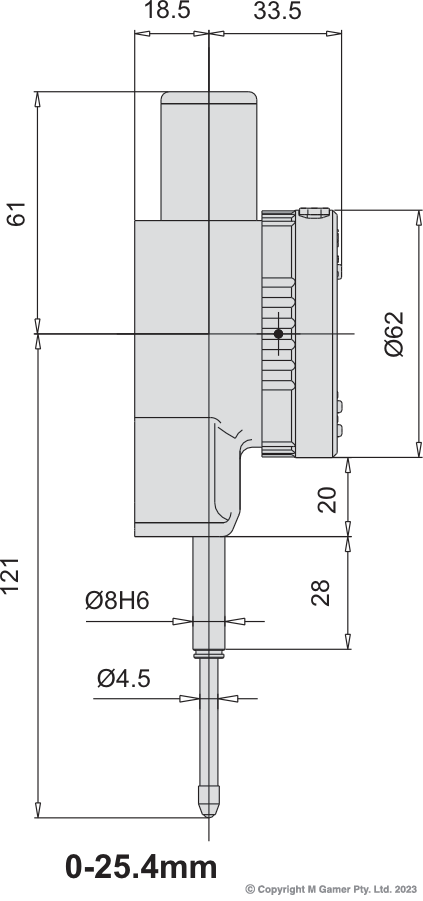

AC-218-025-01W	Order In	25.4mm/1"	1.8µm	1µm	0.0002mm/0.00001" 0.001mm/0.00005" 0.01mm/0.0005"	Ruby	flat
AC-218-025-11W	Stocked	25.4mm/1"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat

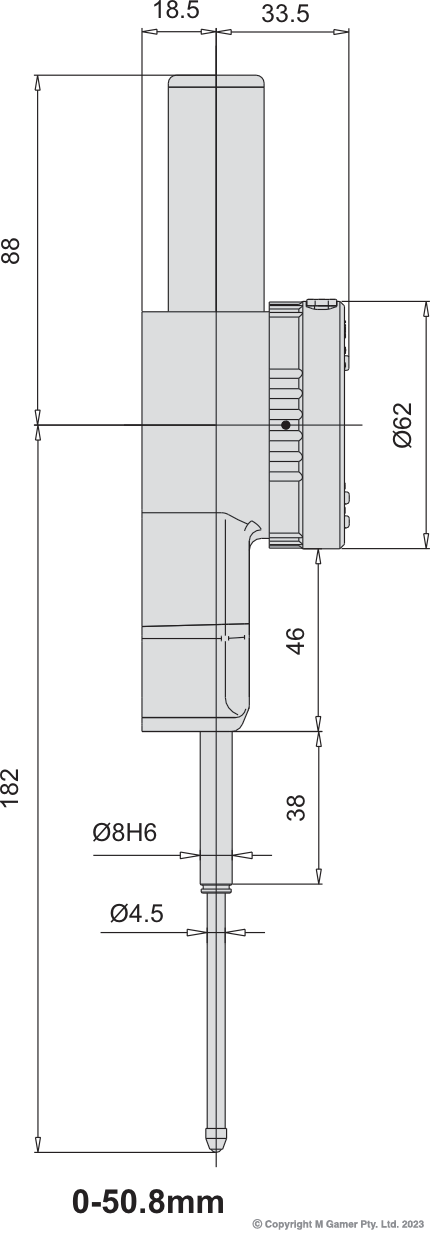

AC-218-050-11W	Order In	50.8mm/2"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat
